PRODUCT DETAILS

Description

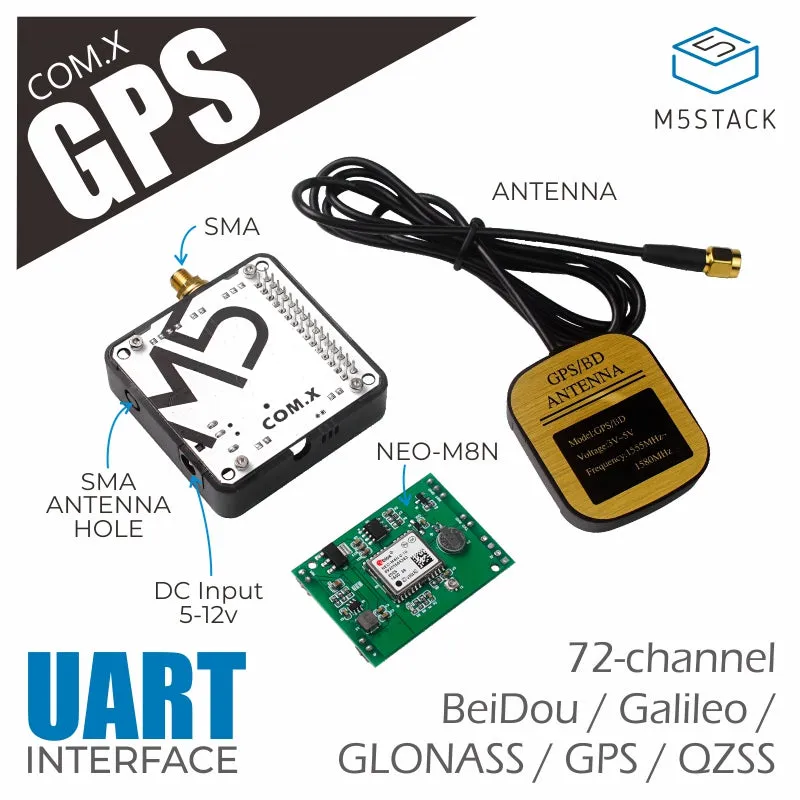

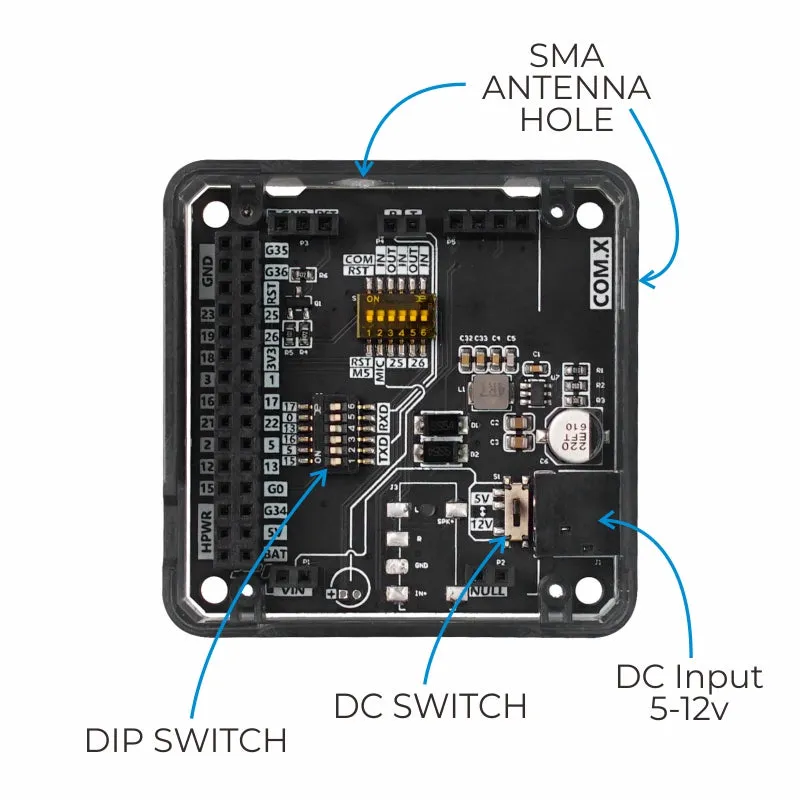

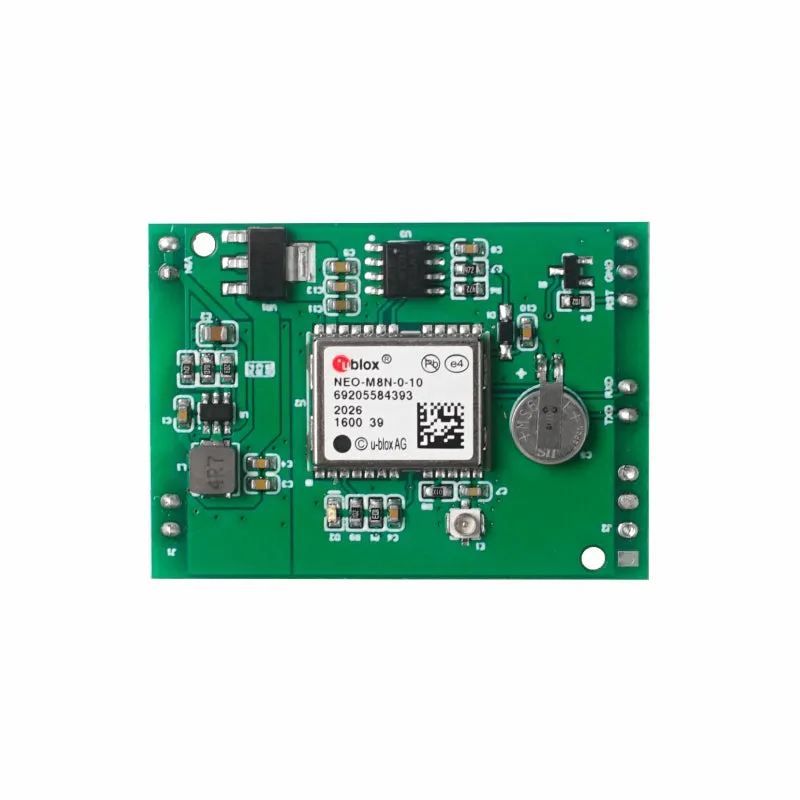

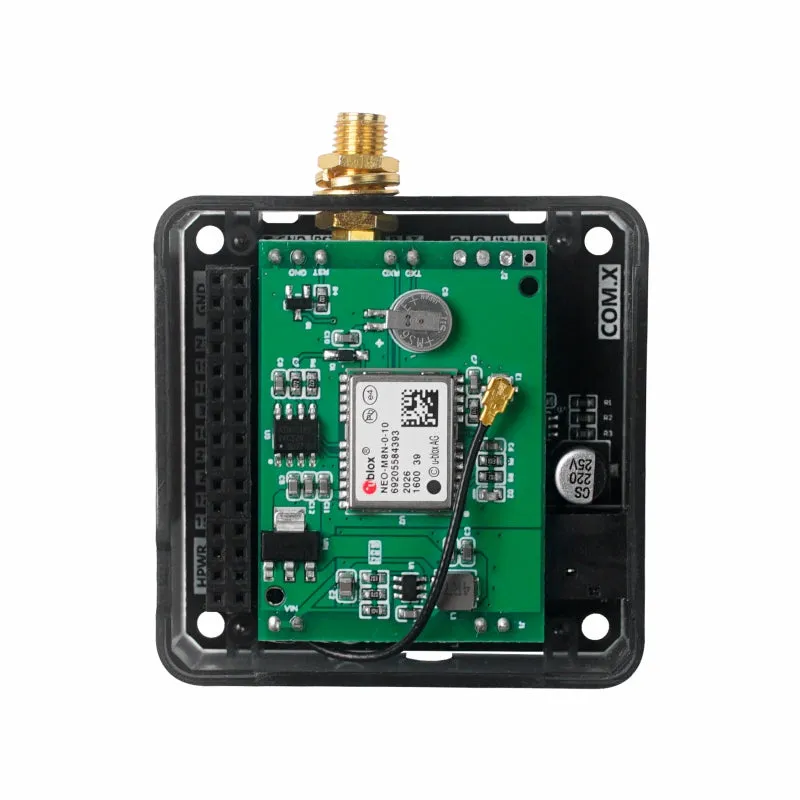

COM.GPS is a satellite positioning module in the M5Stack stacking module series. It is developed based on the NEO-M8N module and is equipped with an active antenna. The NEO-M8 can spend a small amount of time, conduct high-sensitivity acquisition, and keep the system low power consumption. NEO-M8N integrates the 72-channel M8 GNSS engine, supports multiple GNSS systems: BeiDou, Galileo, GLONASS, GPS / QZSS, allowing simultaneous reception 3 Data from a GNSS system. Programmable FLASH is integrated inside the module, which can read and write data. The module's high sensitivity, small static drift, low power consumption and compact size are very suitable for applications in vehicles, handheld devices such as PDAs, vehicle monitoring, mobile phones, cameras and other mobile positioning systems. The UART communication protocol is used between the M5Core and the GPS module, and the serial port connection pins can be modified through the dial switch on the back.

If you want to change the serial port baud rate, please click ( ).

Note: In order to get a good signal from the GPS module, please place the module outdoors when using it.

UART protocol: baud rate (default is 9600bps), data bit (8 bits), start bit (1 bit), stop bit (1 bit), check bit (none).

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

• Antenna type: external GPS antenna
• External antenna port: SMA
• Can receive data from 3 GNSS systems at the same time
• Horizontal position accuracy: minimum 2.5m
• GPS module (NEO-M8N) built-in flash memory, through upgrade firmware
• Protocol: NMEA, UBX, RTCM
• Industry leading -167dBm sensitivity
• Backward compatible with NEO‑7 and NEO‑6 series

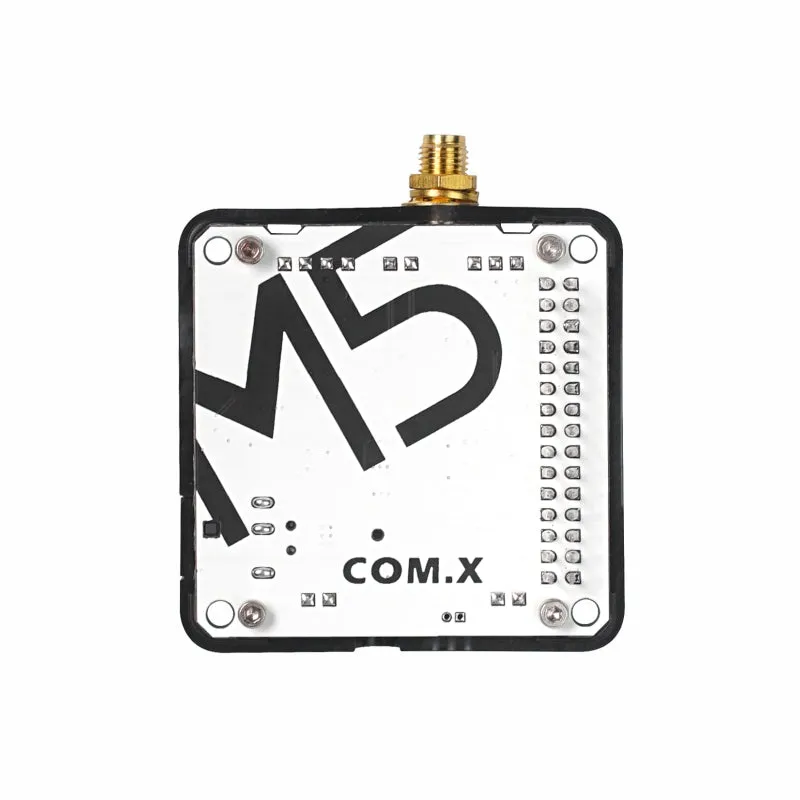

Includes

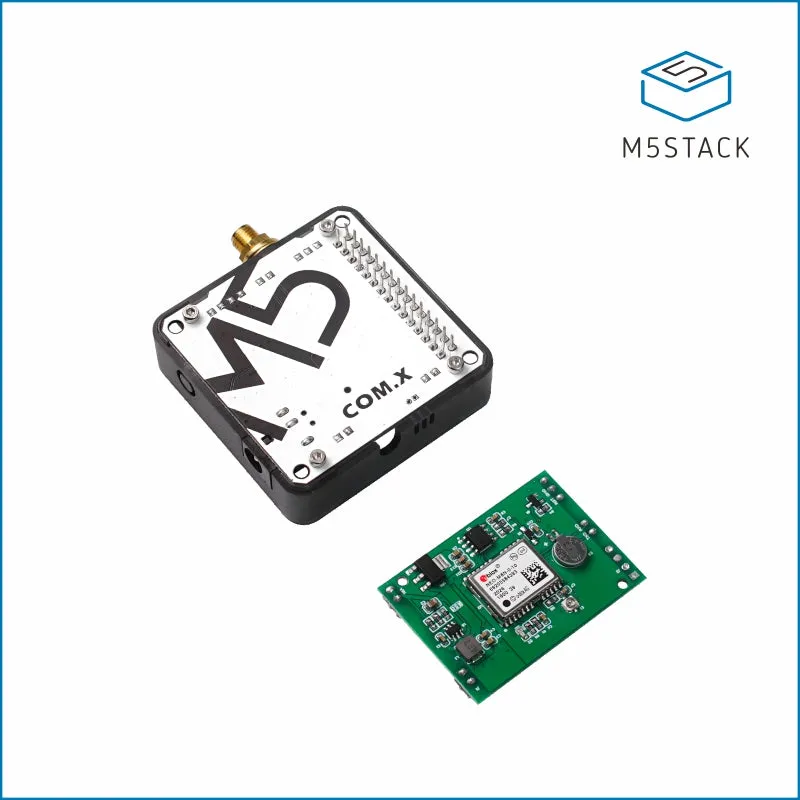

• 1x COM.GPS Module

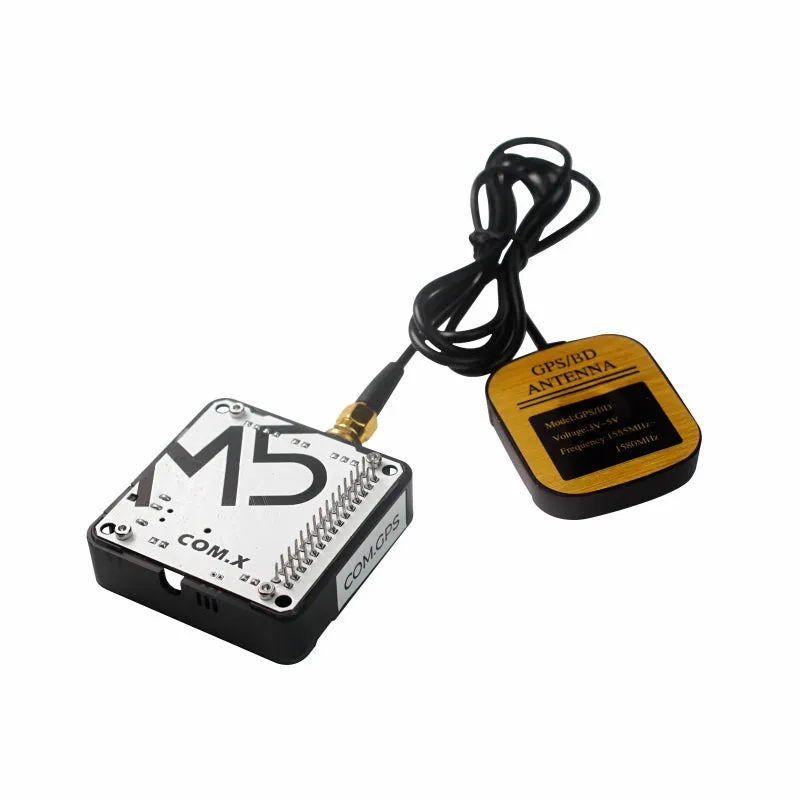

• 1x External antenna(length: 1 m)

Application

• GPS-based logistics tracking management
• Driverless car positioning

Specification
